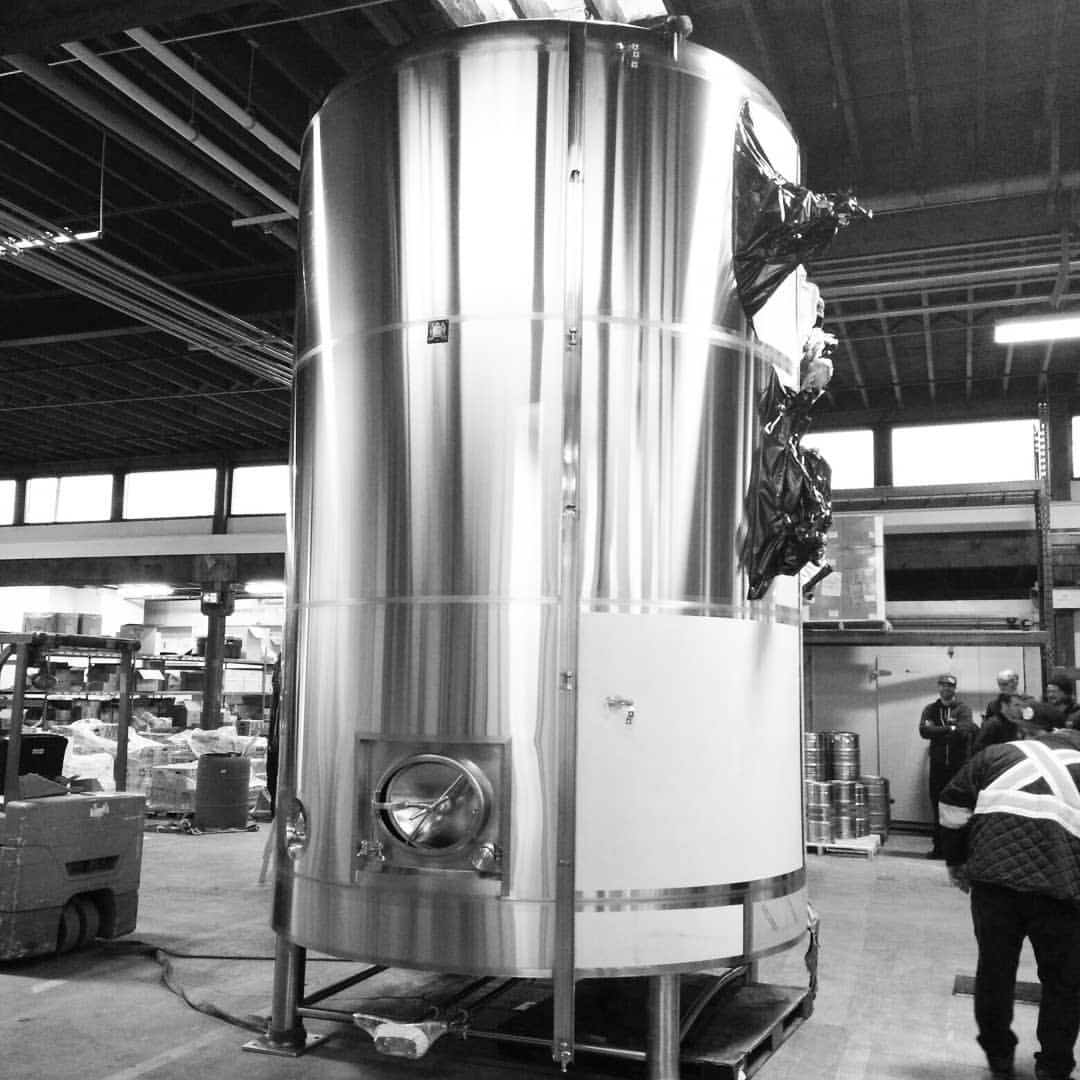

Brite tank, Serving tank
We have the manufacturing capability and expertise to build to towering outdoor tanks. DAYGY has years of experience designing insulated outdoor tanks ranging up to 600 BBL. We offer specialized brite tank design, customized specs, and fittings, with on-site installation support to maximize the efficiency of your operation.
Main Features
304 SS TIG weld construction
Exterior Shell: 2mm thickness, #4 sanitary brushed finish
Interior Shell: 3mm thickness, 2B sanitary finish
Dual-zone dimple cooling jackets(Tested to 6 bar/90Psi).
80mm/3.15″ Polyurethane Insulation
Operating pressure rated below 1 bar/15Psi (Tested to 2 bar/30Psi)
At least 20% overstated headspace
Reinforced stainless steel legs with adjustable height for leveling
Perlick sample valve
Pressure/vacuum relief valve
Temperature gauge port
RTD sensor port(1/2″ NPT optional)
4″ or larger dry hop port
CIP arm and rotating spray ball 360° of coverage
CIP arm with pressure gauge
Butterfly valves included
Assembled carbonation stone.
Side manway door (Top manway optional)
Lifting Lugs
Ladder hooks(10bbl or larger)
