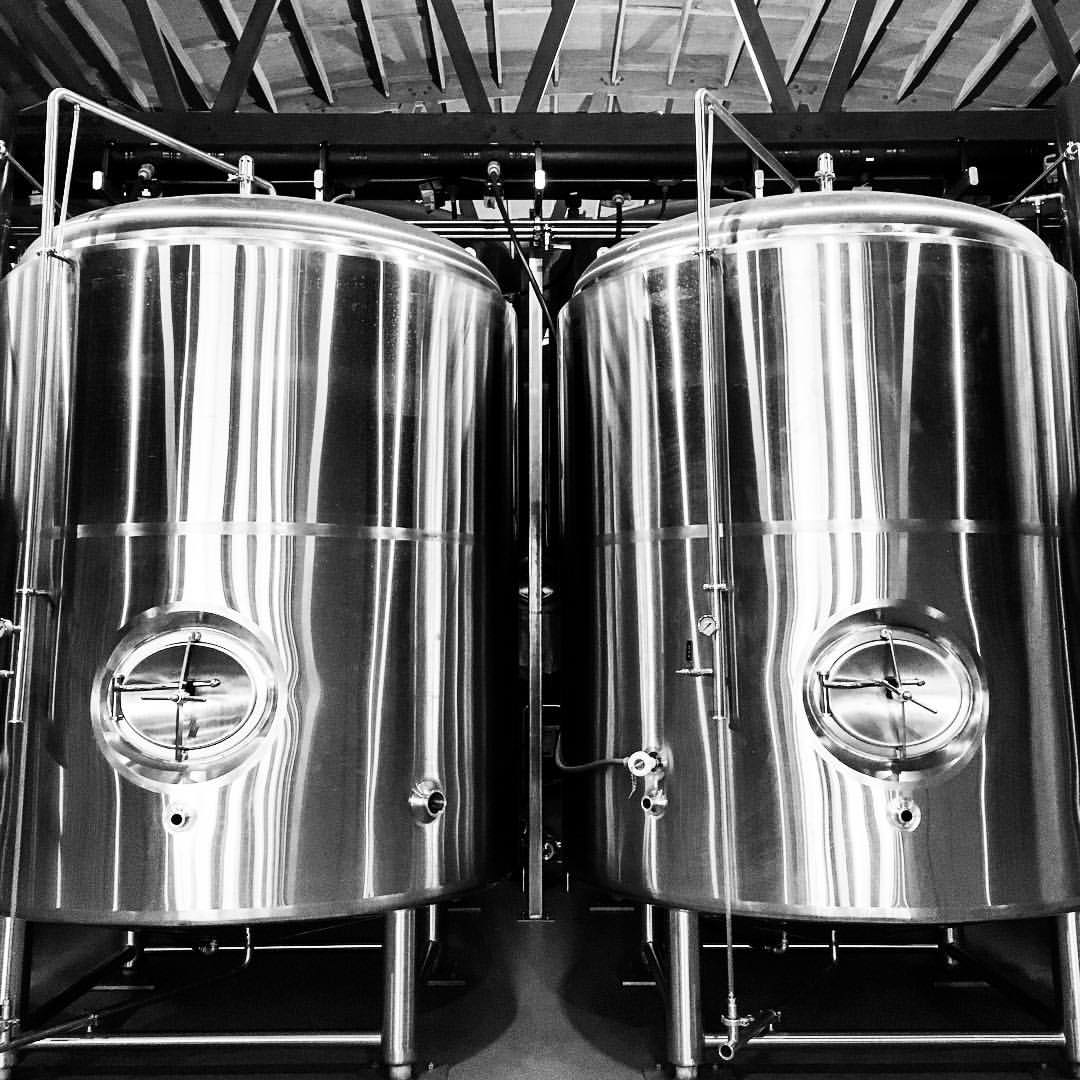

Standard batch Brite tanks

Brite tank, Serving tank

Standard Batch Brite tank are wildly used in Micro-breweries, tanks can be made according to your requst, no matter thinner or stacked brite tanks, all we can do for you.

Main Features

304 SS TIG weld construction

Exterior Shell: 2mm thickness, #4 sanitary brushed finish

Interior Shell: 3mm thickness, 2B sanitary finish

Dual-zone dimple cooling jackets(Tested to 6 bar/90Psi).

80mm/3.15″ Polyurethane Insulation

Operating pressure rated below 1 bar/15Psi (Tested to 2 bar/30Psi)

At least 20% overstated headspace

Reinforced stainless steel legs with adjustable height for leveling

Perlick sample valve

Pressure/vacuum relief valve

Temperature gauge port

RTD sensor port(1/2″ NPT optional)

4″ or larger dry hop port

CIP arm and rotating spray ball 360° of coverage

CIP arm with pressure gauge

Butterfly valves included

Assembled carbonation stone.

Side manway door (Top manway optional)

Lifting Lugs

Ladder hooks(10bbl or larger)
